Horizontal Lenticular module Housing

Horizontal Lenticular module Housing

The Horizontal Lenticular module housing is available for 16” double open ended modules with flat gaskets (DOE). It is a highly precise stainless steel filter housing for filter modules, developed and manufactured for everyday use.

For more information click here or contact us by phone or e-mail

Maximum 100 characters

More Information

Material SS316
Application Water, Food and Beverage, Chemistry, Pharmacy
Diameter 16"
Design pressure (BArG) 6
O-ring EPDM
Cells 4, 8, 12, 16

Product addition / Datasheet

Description / Horizontal Lenticular module Housing

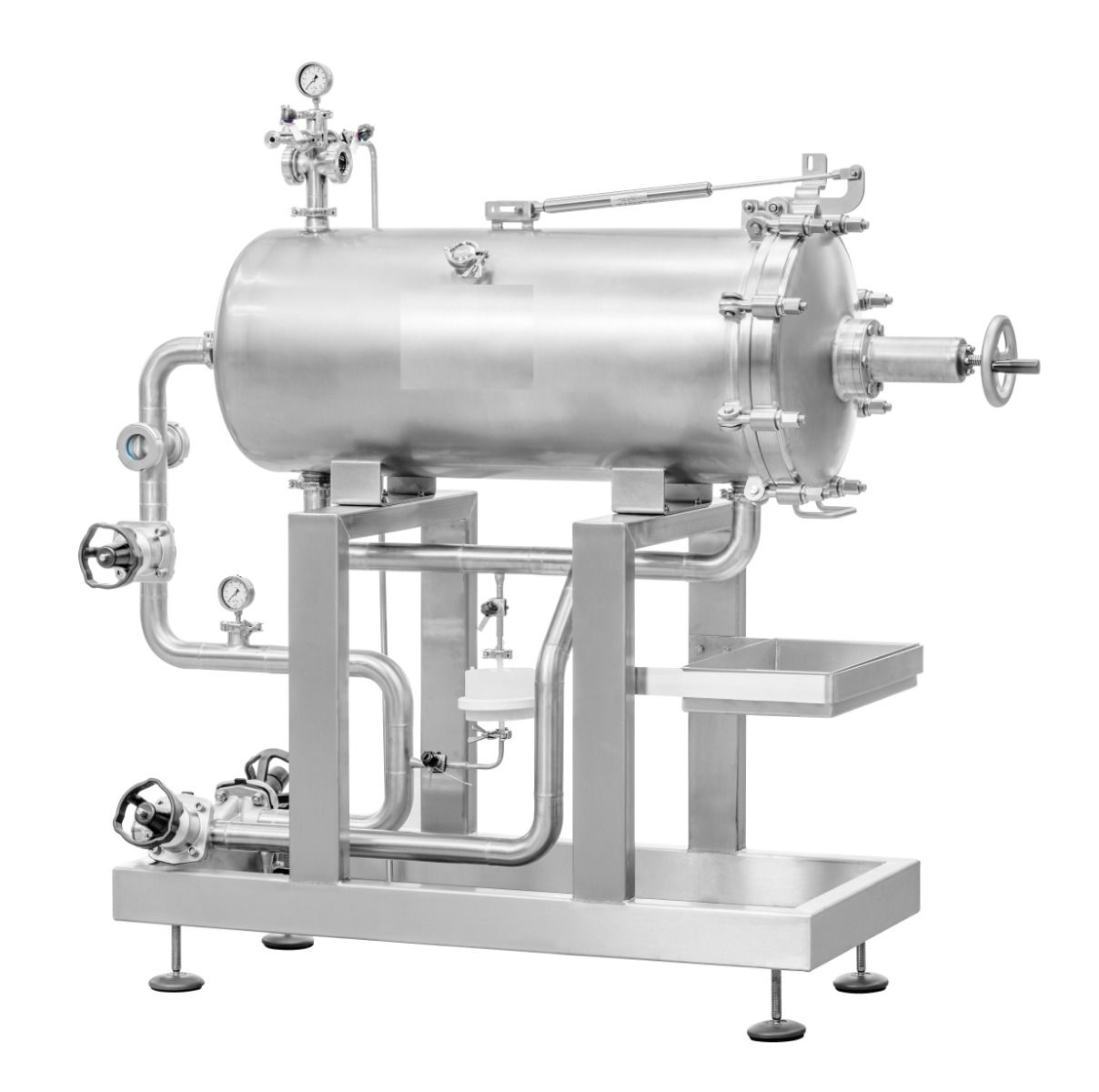

The Horizontal Lenticular module housing is available for 16” double open ended modules with flat gaskets (DOE). It is a highly precise stainless steel filter housing for filter modules, developed and manufactured for everyday use. The enclosed system enables depth filtration to be carried out without drip loss. Compared to standard vertical housings the Horizotal housing is turned into a horizontal position. On one side there is a closure head through which the filter modules are loaded. The opening of the lid is supported by a gas-pressurized spring. To ensure a proper compression of the module stack, a compression force can be applied from the outside. No crane is needed to open the housing. Venting valve, sight glass, pipework and instrumentation are permanently installed. An optional residual filter can be installed to minimize the dead volume. The horizontal design allows a much easier and time saving operation. The Horizontal lenticular housing is much safer to operate and easier to handle due to an economic chest working height and easy loading and disposing of the modules
