Mining, Petrochemicals, Steel production

Oil Skimmers

Oilskimmers , inc. is the leading manufacturer of oil skimmers and oil removal systems , specializing in the recovery of all types of floating waste oils, lubricants and greases from water surfaces.

Companies around the world benefit from our Oilskimmers in the removal of fats, oils, lubricants or coolants from process water and wastewater thanks to the specially developed Filter Hoses. These filter hoses are designed to scrape grease and oil from the surface.

Contact

Oil Skimmers
Shop By

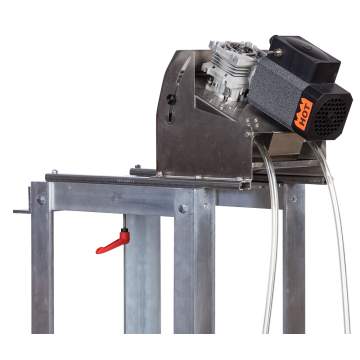

1H-Oilskimmer
1H-Oilskimmer
The compact 1H oil skimmer has a 1/2 inch collector tube to remove oil from surface water. The compact design makes the skimmer suitable for areas with limited access or for skimming small areas such as in tanks or on ships.
View Product
OilSkimmer Horizotal tube skimmer

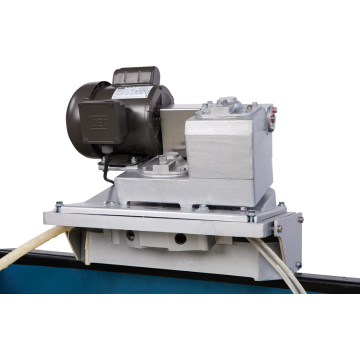

5H-Oilskimmer
The Oilskimmer 5H is a skimmer that can be placed horizontally and often directly on the edge of a tank. This makes the 5H Oilskimmer ideal for above ground tanks.
View Product
Oil skimmer 6V
6V-Oilskimmer
The Oilskimmer 6V is one the most versatile Oilskimmer in the range and has been efficiently removing oil in all industries and applications around the world for decades.
View Product

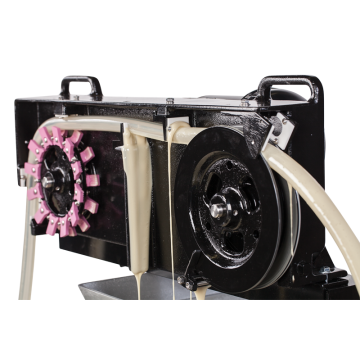

7V-Oilskimmer
7V-Oilskimmer
The oilskimmer 7V model has a 1-inch collector tube and a variable speed drive resulting in a larger oil absorption capacity. In addition, this skimmer has an epoxy coating for added durability. The 7v is specially designed to perform under the toughest conditions.
View Product

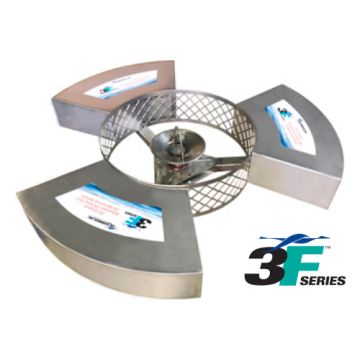

3F-Oilskimmer
3F-Oilskimmer
The 3F Oilskimmer is a 360 degree floating skimmer and has 3 floats with a central inlet in the middle. This allows oil to be sucked up from all directions. The 3F Skimmer is Ideal for cleaning up oil spills, or removing oil from your wastewater.
View Product
Oil Skimmer Tube Black and White
Oil Skimmer Tube

The Oil Skimmer Tube, an essential part of the Oil Skimmer, is designed for efficient removal of oils from liquid surfaces. The two variant tubes are available in different lengths and suitable for use at high temperatures.
View Product

How does a oil skimmers work?

Basically, the operation of the oil skimmer is not very difficult. The oil catching tube moves across the surface of the water. Due to the pulling force of the filter tubes, the oil stays on it. The oil skimmer will then scrape off the oil or grease.

We are happy to advise you in selecting the right oil skimmer, especially since not every application or location can be accomplished with the same oil skimmers. There are also different oil skimmet tubes available which, for example, have good chemical or temperature resistance.
Therefore, we offer various oil skimmer models from Oilskimmers Inc.

We have:

Olie skimmers

Floating oil  skimmer for tanks

Floting oil skimmer



Filter tube

An oil skimmer uses hoses to scrape oil from surface water. The Oil Skimmers filter hoses are available in two types a transparent one for low temperatures and a black one for high temperatures. The Filter Hoses are made of polyurethane which makes them very abrasion resistant and allows the skimmer to run for a very long time with no maintenance required.

oil skimmer working principle pdf
ESS-Information_Sheet

ORTS_BROCHURE
Contact

An oil skimmer removes floating oils, greases, and lubricants from the surface of water or coolants. This prevents contamination of process water, reduces maintenance, and improves the efficiency of water treatment systems.

The skimmer uses a collector tube or belt that moves across the water surface. Oil and grease adhere to the material of the tube, after which the skimmer scrapes the oil off mechanically and collects it in a reservoir.

Oil skimmers are widely used in mining, petrochemical, steel production, metalworking, water treatment, and marine industries — anywhere oil or grease is present on water surfaces.

  • Efficient removal of floating oil and grease
  • Reduces maintenance on pumps and filters
  • Extends coolant and process fluid life
  • Lowers wastewater treatment costs
  • Easy installation and low energy consumption

Different models are available, including vertical, horizontal, and floating skimmers. The ideal choice depends on tank size, installation space, and the amount of oil to be removed.

The transparent tube is suitable for low-temperature environments, while the black tube is designed for high temperatures and chemical resistance. Both are made from durable polyurethane, ensuring long service life and minimal wear.

Oil skimmers are virtually maintenance-free. The collector tubes are highly wear-resistant and require replacement only occasionally. Periodic cleaning of the scraper mechanism helps maintain optimal performance.

Tube replacement is quick and simple. The old tube is removed, and the new one is fitted over the guide rollers and tensioned. No special tools are required for installation.

Selection depends on factors such as oil type, viscosity, water temperature, tank design, and available space. Our filtration experts can help determine the most suitable model for your specific application.

We offer a complete range of oil skimmers, collector tubes, and spare parts. Our team provides expert advice, maintenance, and fast delivery from stock to ensure smooth operation of your system.
